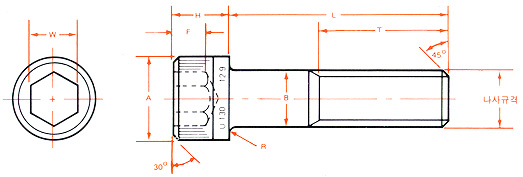

현재 위치 : Products/Socket Head Cap Screws/육각소켓렌치볼트       MM규격 (단위 : mm) 나사 규격 나사산 A 최대 B 최대 H 최대 W 표준 F 최소 T 기본 R 최대 L SCM SUS M1.6 M2 0.35 0.40 3.0 3.8 1.6 2.0 1.6 2.0 1.5 1.5 0.80 1.0 15 16 0.2 0.3 규 격 1 규 격 3 M2.5 M3 0.45 0.5 4.5 5.5 2.5 3.0 2.5 3.0 2.0 2.5 1.25 1.5 17 18 0.3 0.3 M4 M5 0.7 0.8 7.0 8.5 4.0 5.0 4.0 5.0 3.0 4.0 2.0 2.5 20 22 0.35 0.35 M6 M8 1.0 1.25 10.0 13.0 6.0 8.0 6.0 8.0 5.0 6.0 3.0 4.1 24 28 0.4 0.6 M10 1.5 16.0 10.0 10.0 8.0 5.0 32 0.6 M12 1.75 18.0 12.0 12.0 10.0 6.0 36 1.0 규 격 2 M14 M16 2.0 2.0 21.0 24.0 14.0 16.0 14.0 16.0 12.0 14.0 7.0 8.0 40 44 1.0 1.0 M20 M24 2.5 3.0 30.0 36.0 20.0 24.0 20.0 24.0 17.0 19.0 10.0 12.0 52 60 1.2 1.2   M30 M36 3.5 4.0 45.0 54.0 30.0 36.0 30.0 36.0 22.0 27.0 15.5 19.0 72 84 1.5 1.5 M42 4.5 63.0 42.0 42.0 32.0 24.0 96 1.6 인치규격 (단위 : 인치) 나 사 규 격 1인치당 나사산수 A 최대 B 최대 H 최대 W 표준 F 최소 T 기본 R 최대 L UNC UNF SCM SUS # 0 # 1 - 64 80 72 .096 .118 .060 .073 .060 .073 .050 1/16 .025 .031 .500 .625 .007 .007 규 격 1 규 격 4 # 2 # 3 56 48 64 56 .140 .161 .086 .099 .086 .099 5/64 5/64 .038 .044 .625 .625 .008 .008 # 4 # 5 40 40 48 44 .183 .205 .112 .125 .112 .125 3/32 3/32 .051 .057 .750 .750 .009 .010 # 6 # 8 32 32 40 36 .226 .270 .138 .164 .138 .164 7/64 9/64 .064 .077 .750 .875 .010 .012 # 10 24 32 .312 .190 .190 5/32 .090 .875 .014 1/4 20 28 .375 .250 .250 3/16 .120 1.000 .014 규 격 2 규 격 5 5/16 3/8 18 16 24 24 .468 .563 .312 .375 .312 .375 1/4 5/16 .151 .182 1.125 1.250 .017 .020 7/16 1/2 14 13 20 20 .656 .750 .437 .500 .437 .500 3/8 3/8 .213 .245 1.375 1.500 .023 .026 5/8 3/4 11 10 18 16 .937 1.125 .625 .750 .625 .750 1/2 5/8 .307 .370 1.750 2.000 .033 .039 규 격 3   7/8 1 9 8 - - 1.312 1.500 .875 1.000 .875 1.000 3/4 3/4 .432 .495 2.250 2.500 .045 .050 1 1/4 1 1/2 7 6 - - 1.875 2.250 1.250 1.500 1.250 1.500 7/8 1 .620 .745 3.125 3.750 .060 .070   현재 위치 : Products/Socket Head Cap Screws/육각소켓렌치볼트
